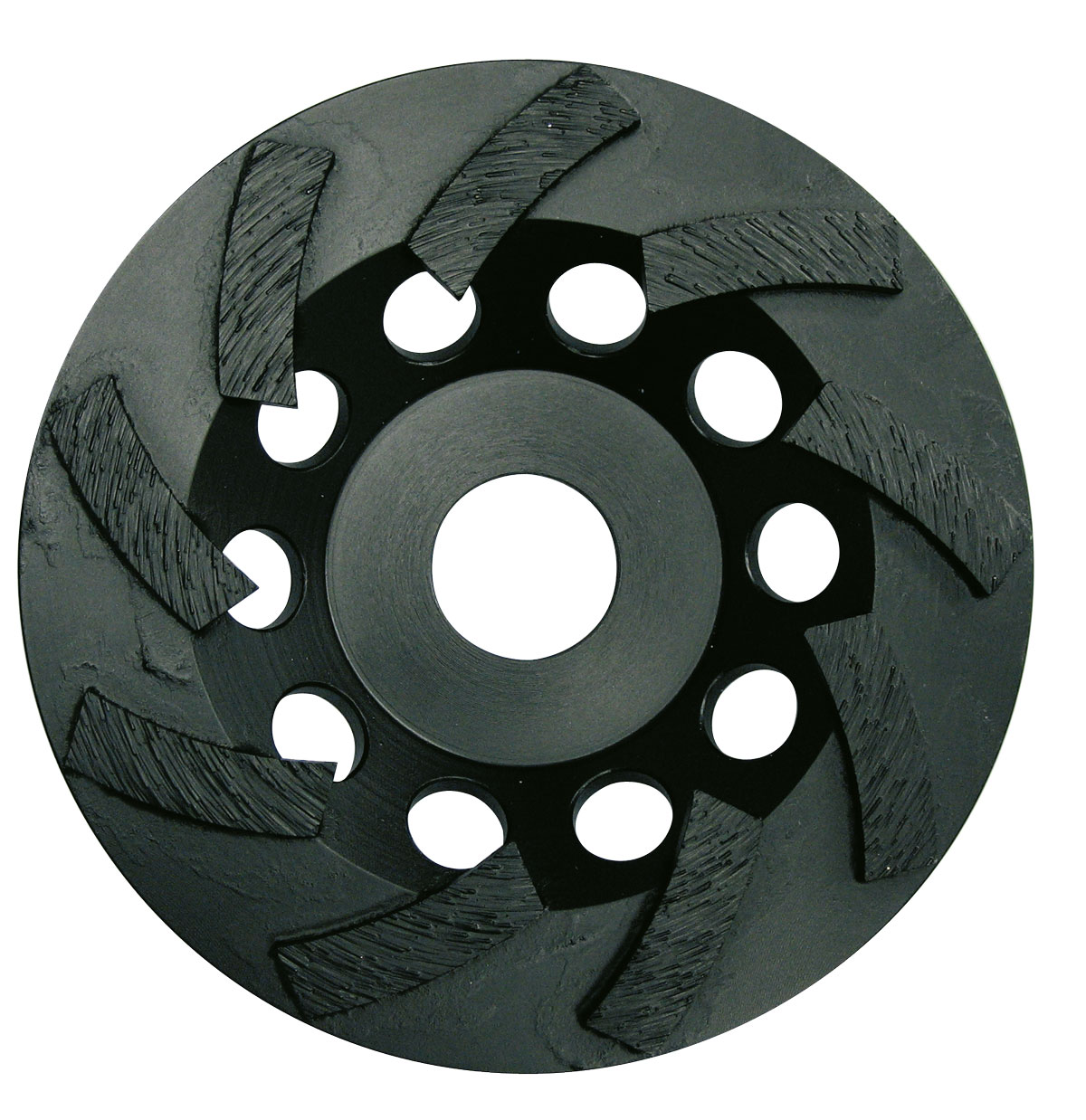

DST Speed

The DST Speed diamond cup grinder is a powerful tool for all users who need to remove high quantities of material quickly. Optimized segment geometry, special diamonds in aggressive bonding.

  • 2.5 times higher removal rate*
  • Segments with special diamonds in aggressive bond
  • Also highly suitable for removing adhesive residue and thermoplastic coatings

Field of application: For concrete, floor pavement and natural stone.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment shapePUItem codeEAN code
115 x 18 x 22,234 1/2 x 45/64 x 7/8133009Radial1ED DST SPEED 1154255705102467
125 x 18 x 22,235 x 45/64 x 7/8122009Radial1ED DST PLUS 1254255705102474

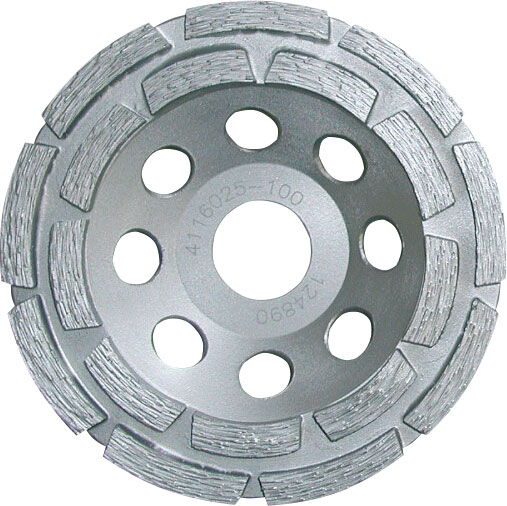

DST Plus

Professional cup grinder with 2 segment rows. For universal application.

  • High removal rates
  • Removes significantly more material
  • Ergonomic handling

Field of application: For grinding concrete, natural stone, floor pave- ment, sand-lime brick, plaster, aerated concrete, green concrete.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment shapePUItem codeEAN code
115 x 18 x 22,234 1/2 x 45/64 x 7/81330016Double row1ED DST PLUS 1154255705102436
125 x 18 x 22,235 x 45/64 x 7/81220014Double row1ED DST PLUS 1254255705102443
180 x 18 x 22,237 x 45/64 x 7/8850028Double row1ED DST PLUS 1804255705102450

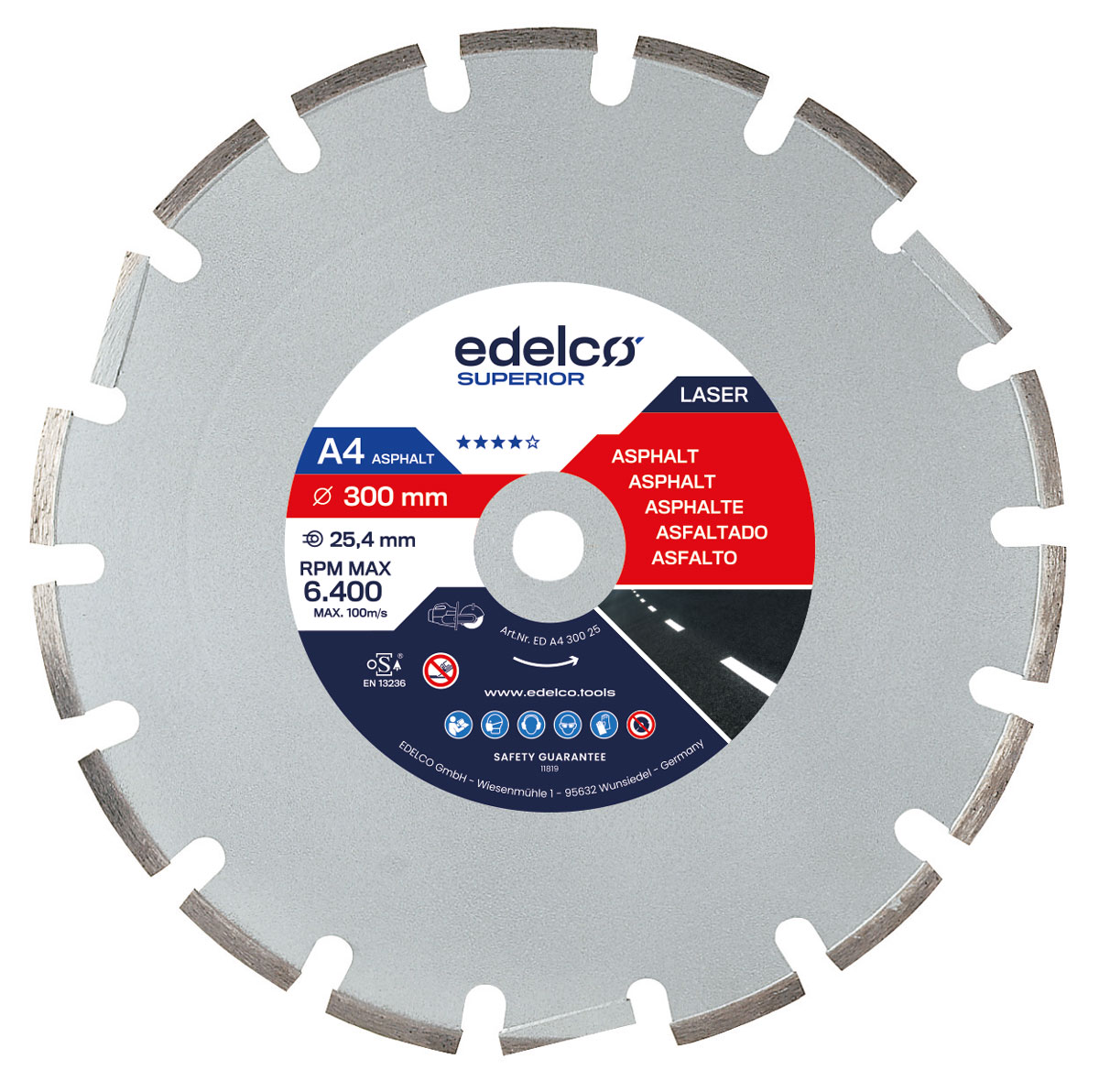

A4 Asphalt

High-performance, laser-welded diamond cutting disc for professional use on asphalt. Also
suitable for green concrete (up to 24 hrs.), screed and abrasive, soft stone.

  • Special cutting disc for hard stone/natural stone
  • High cutting speed
  • Long service life
  • 10-mm segment height
  • Laser welded – no cooling breaks required

Field of application: Dry or wet cutting. Also suitable for asphalt, green concrete (up to 24 hrs.), screed and abrasive, soft stone.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
300 x 2,8 x 2012 x 7/64 x 3/464001810C1S1ED A4 300 204255705102368
300 x 2,8 x 25,412 x 7/64 x 164001810C1S1ED A4 300 254255705102375
350 x 2,8 x 2014 x 7/64 x 3/455002110C1S1ED A4 350 204255705102382
350 x 2,8 x 25,414 x 7/64 x 155002110C1S1ED A4 350 254255705102399

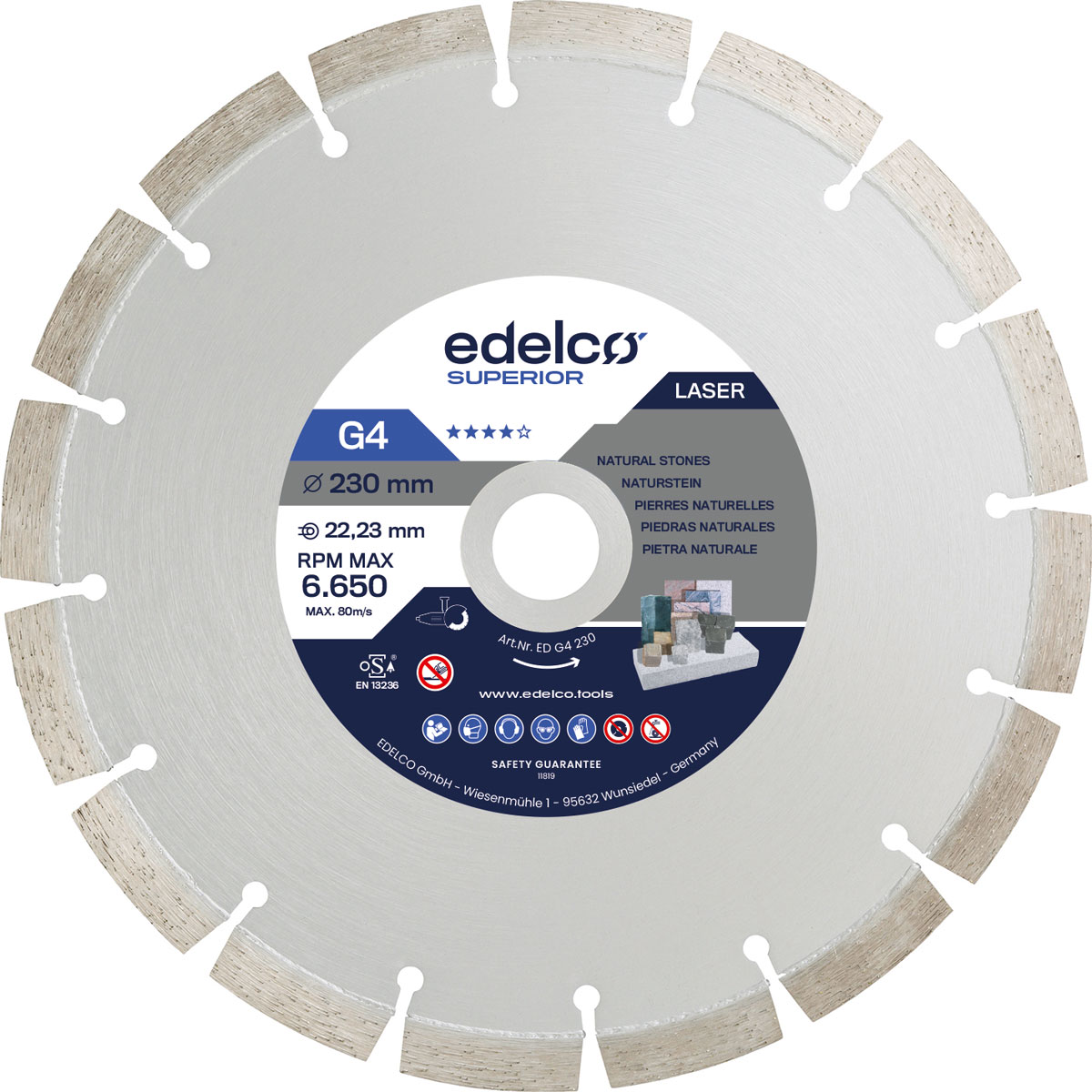

G4

High-performance, laser-welded diamond cutting disc for effort- lessly cutting natural stones. The soft, easy-cutting disc is used for applications where extremely impact-resistant diamonds are required.

  • Special cutting disc for hard stone/natural stone
  • High cutting speed
  • Long service life
  • 10-mm segment height
  • Laser welded – no cooling breaks required

Field of application: Dry or wet cutting. For hard stone/natural stone such as granite, basalt, slate, terrazzo, clinker, gneiss and porphyry.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 2,2 x 22,234,5 x 5/64 x 7/813300810C31ED G4 1154255705102337
125 x 2,2 x 22,235 x 5/64 x 7/812200910C31ED G4 1254255705102344
230 x 2,4 x 22,239 x 3/32 x 7/866501512C31ED G4 2304255705102351

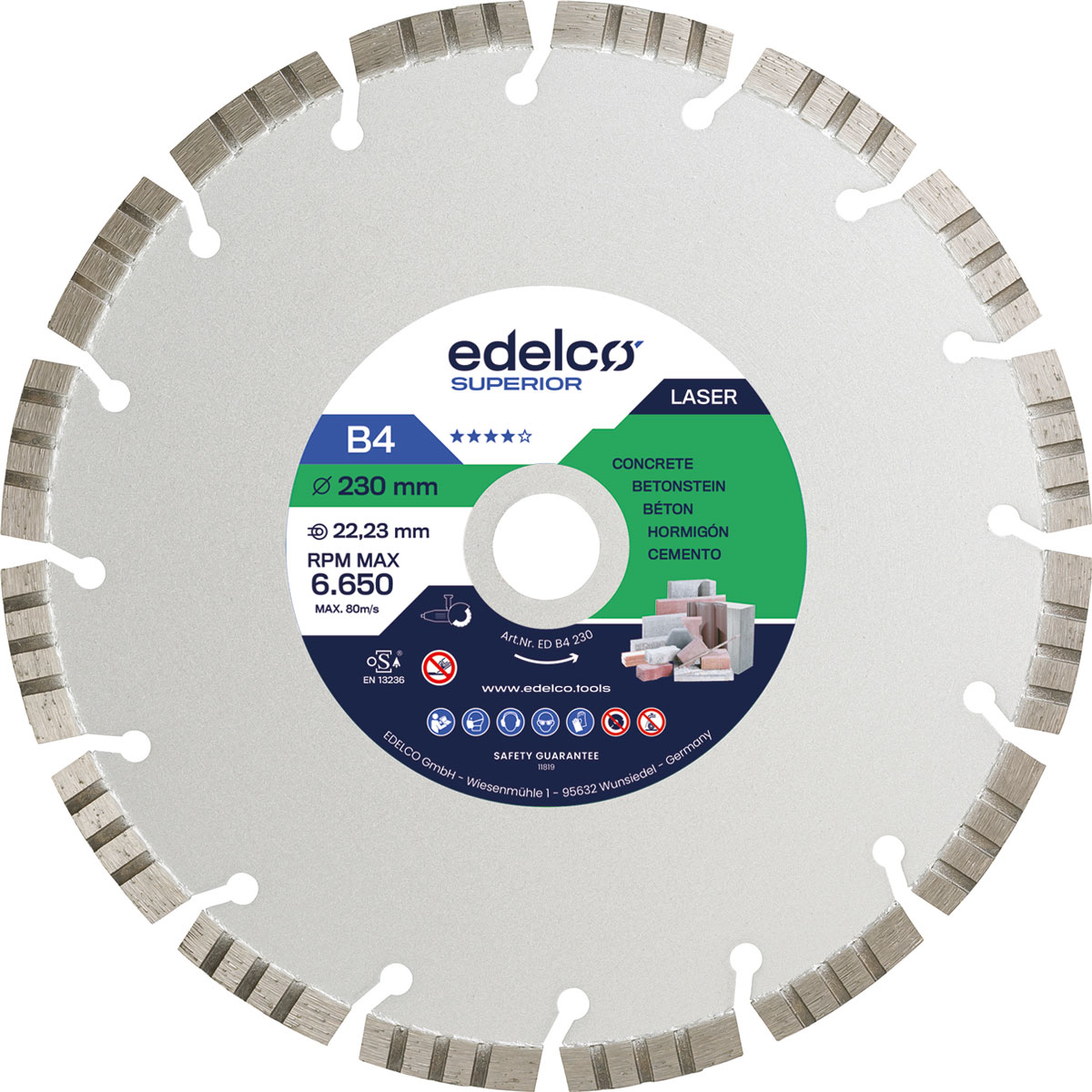

B4

Aggressive,laser-welded B4 diamond cutting disc for profes- sional use on concrete and composite concrete paving. The particularly well-balanced segment bond guarantees an easy use on all types of concrete, including those with reinforcement.

  • Easy use on all types of concrete
  • High cutting speed
  • Good service life10-mm segment height
  • Laser welded – no cooling breaks required

Field of application: Dry or wet cutting. For bricks, rein-forced concrete, composite concrete paving, concrete roofing tiles, exposed aggregate concrete, cotto slabs and terrazzo.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 2,2 x 22,234,5 x 5/64 x 7/813300910C31ED B4 1154255705102030
125 x 2,2 x 22,235 x 5/64 x 7/8122001010C31ED B4 1254255705102047
230 x 2,4 x 22,239 x 3/32 x 7/865001610C31ED B4 2304255705102061
300 x 2,8 x 2012 x 7/64 x 3/464001610C31ED B4 300 204255705102078
300 x 2,8 x 22,2312 x 7/64 x 7/864001610C31ED B4 300 254255705102085
350 x 3,2 x 2014 x 7/64 x 3/455001910C31ED B4 350 204255705102092
350 x 3,2 x 25,414 x 7/64 x 155001910C31ED B4 350 254255705102108
400 x 3,2 x 25,416 x 7/64 x 147802810C31ED B4 400 254255705102115

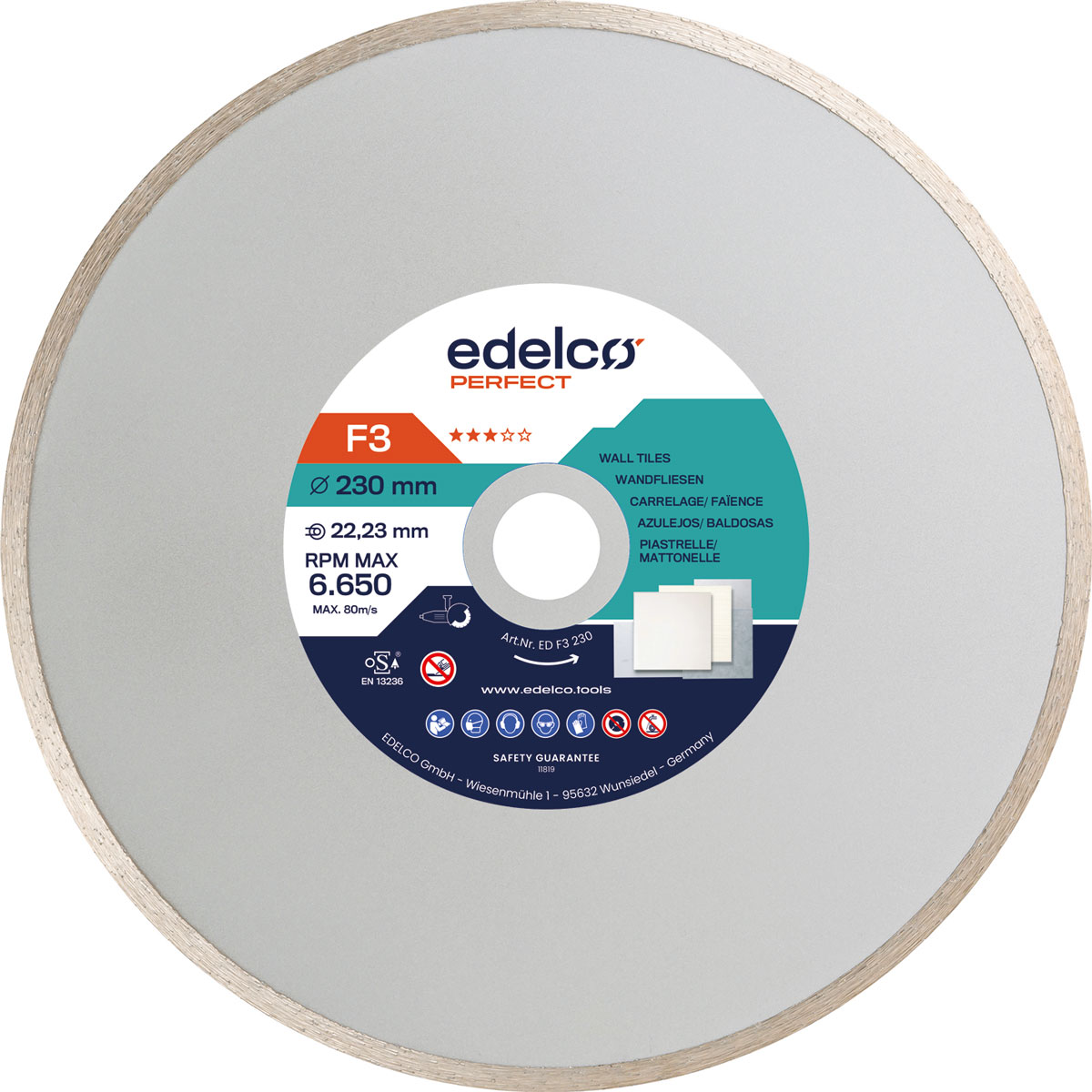

F3


Proven thousands of times over: sintered diamond cutting
disc with continuous cutting rim for breakout-free edges when cutting tiles.

  • Good price-performance ratio
  • Clean, breakout-free edges
  • Good cutting performance during normal use

Field of application: Dry or wet cutting. For wall or floor tiles.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 1,9 x 22,234,5 x 5/64 x 7/813300–5GR1ED F3 1154255705102160
125 x 2 x 22,235 x 5/64 x 7/812200–5GR1ED F3 1254255705102177
180 x 2 x 22,237 x 3/32 x 7/88500–5GR1ED F3 180 224255705102184
180 x 2 x 25,47 x 3/32 x 18500–5GR1ED F3 180 254255705102191
230 x 2 x 22,239 x 3/32 x 7/86650–5GR1ED F3 2304255705102207

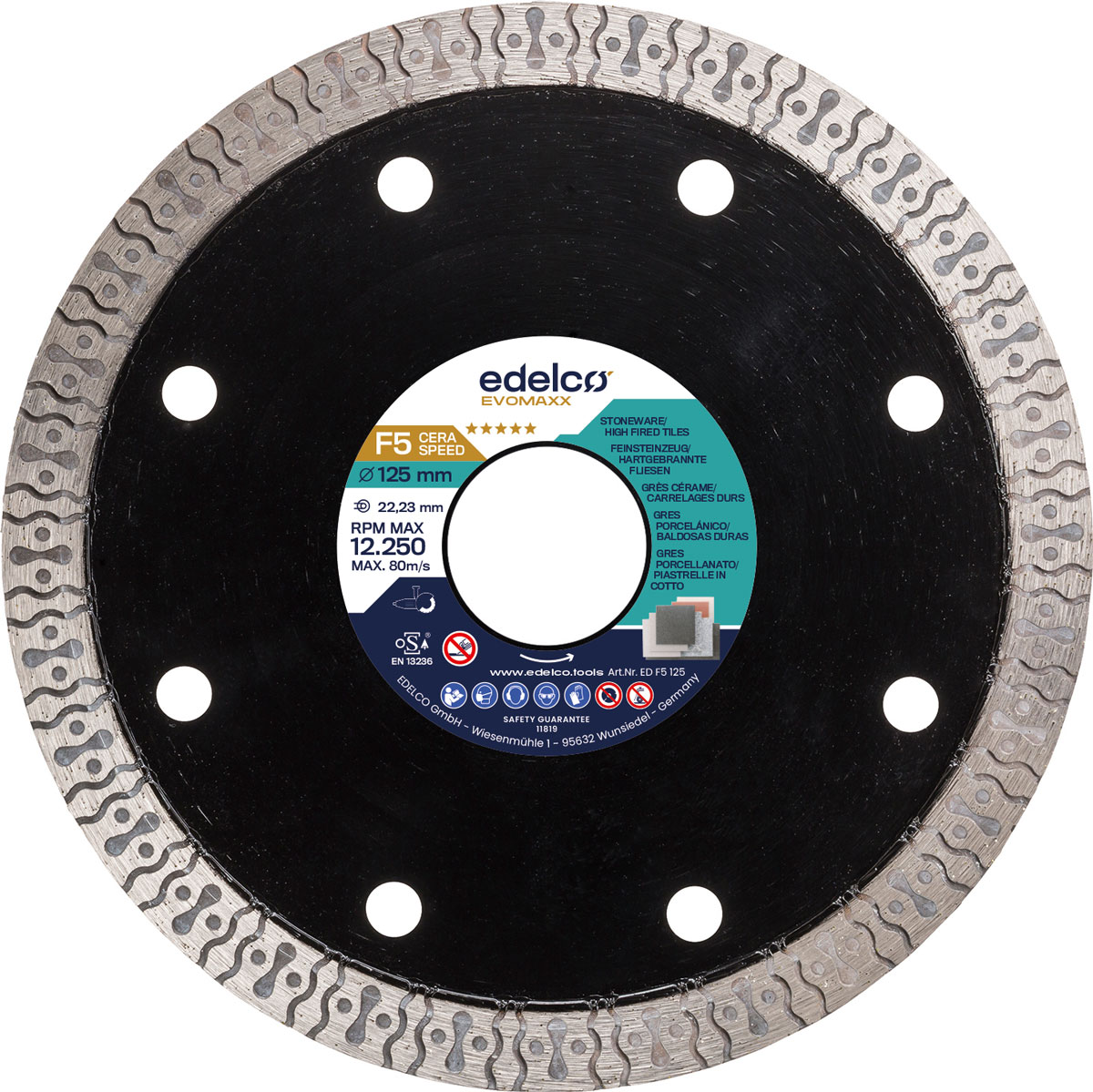

F5 cera speed

The tiler’s favourite for the finest cuts.

The particularly thin disc and special geometry of the cutting edge enable an exceptional cutting speed along with comfort- able, smooth working conditions. The 10-mm-high diamond segmentation ensures an optimal service life. This blade offers maximum safety thanks to the integrated flange around the bore.

  • Thin 1.2-mm cutting rim with special geometry
  • Clean, breakout-free edges
  • Minimal loss of material
  • Exceptionally fast cutting
  • Ergonomic, smooth cutting
  • Very good service life thanks to 10-mm segment height

Field of application: Dry or wet cutting. For stoneware and high fired tiles. For natural stone slabs of marble, granite or terrazzo.

Ø in mmØ in inchesRPM min-1No. of segmentsSegment height mmShapePUItem codeEAN code
115 x 1,4 x 22,234,5 x 3/64 x 7/813300–10GR1ED F5 1154255705102313
125 x 1,4 x 22,235 x 3/64 x 7/812200–10GR1ED F5 1254255705102320

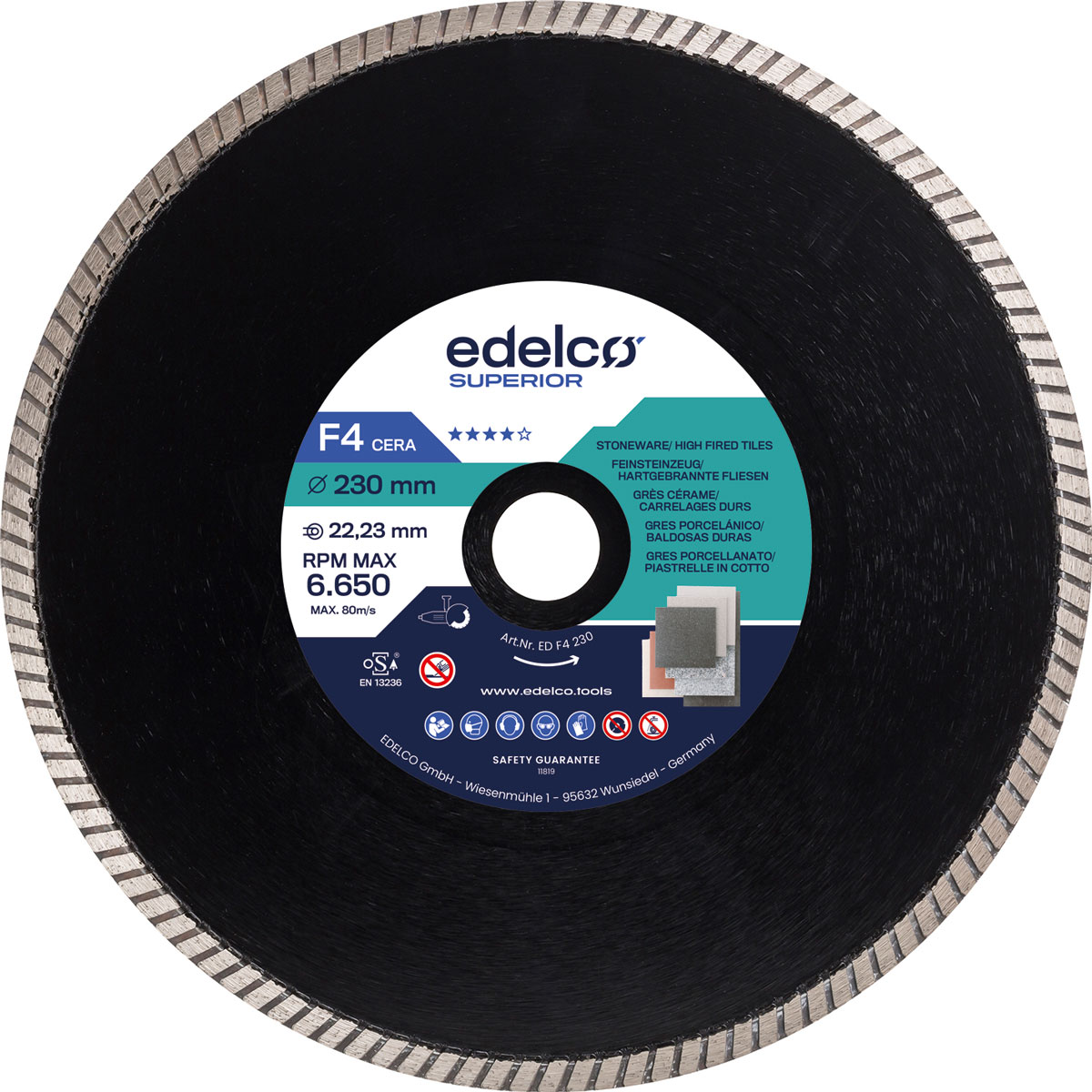

F4 cera

This thin, high-performance cutting disc with a turbo cutting rim is ideally suited for effortlessly cutting stoneware and quarry tiles.Also ideal for stone slabs of granite and other hard stones.

  • Outstanding cutting speed
  • Minimal physical effort required
  • Clean, breakout-free edges
  • Excellent service life

Field of application: Dry or wet cutting. For fine stoneware and high fired tiles. For natural stone slabs of marble, granite or terrazzo.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 1,4 x 22,234,5 x 1/8 x 7/813300–7,5GR1ED F4 CERA 1154255705102214
125 x 1,4 x 22,235 x 1/8 x 7/812200–7,5GR1ED F4 CERA 1254255705102221
180 x 2 x 22,237 x 5/64 x 7/88500–7,5GR1ED F4 CERA 180 224255705102238
180 x 2 x 25,47 x 5/64 x 18500–7,5GR1ED F4 CERA 180 254255705102245
200 x 2 x 25,48 x 5/64 x 17650–7,5GR1ED F4 CERA 200 254255705102252
230 x 2 x 22,239 x 5/64 x 7/86650–7,5GR1ED F4 CERA 2304255705102269
300 x 2 x 25,412 x 5/64 x 16400–7,5GR1ED F4 CERA 300 254255705102276
300 x 2 x 3012 x 5/64 x 1 1/56400–7,5GR1ED F4 CERA 300 304255705102283
350 x 2 x 25,414 x 5/64 x 15500–7,5GR1ED F4 CERA 350 254255705102290
350 x 2 x 3014 x 5/64 x 1 1/55500–7,5GR1ED F4 CERA 350 304255705102306

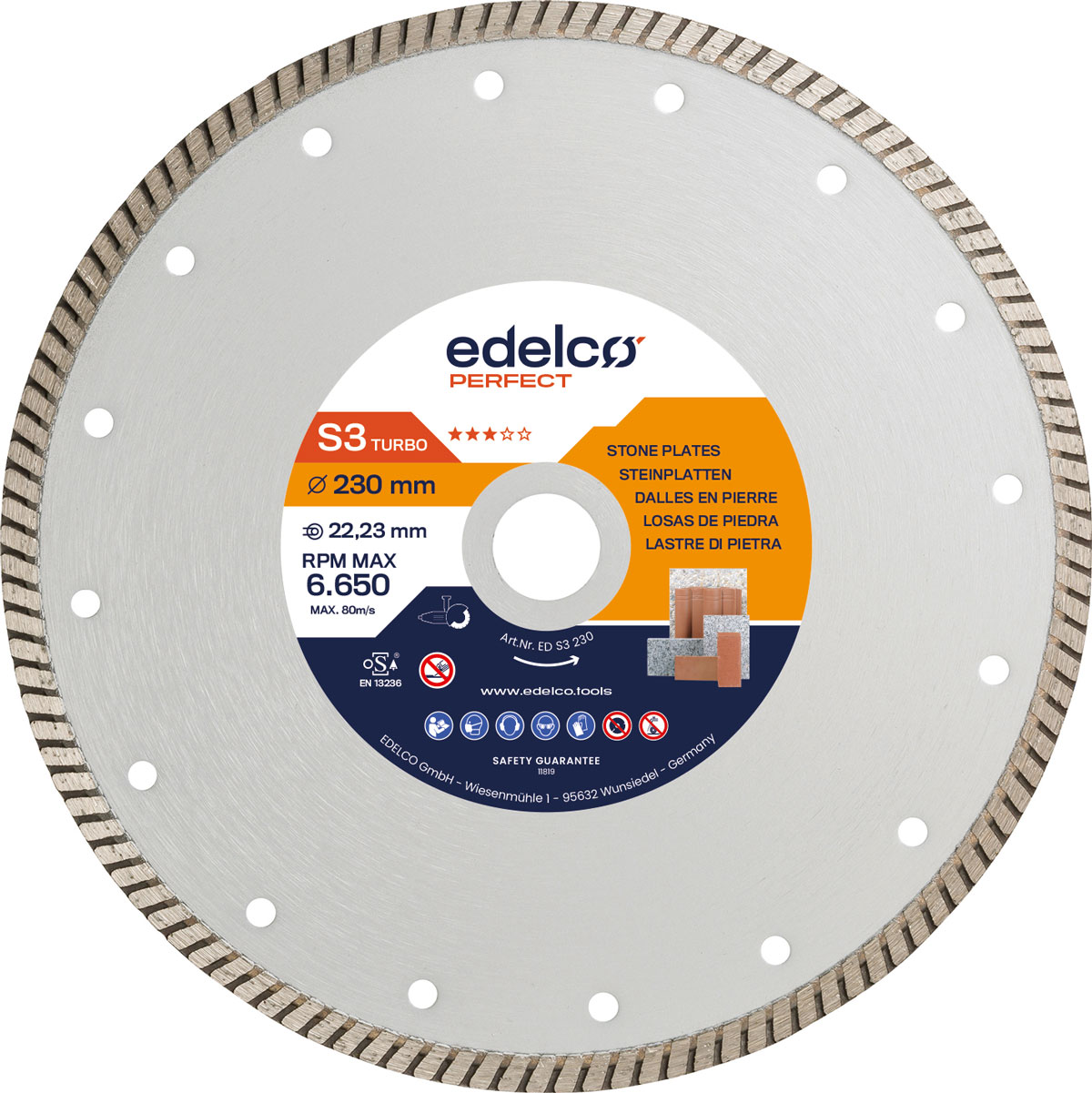

S3 turbo

For cutting stone slabs. Our proven, sintered diamond cutting
disc for use on thin construction site mate-rials. The cutting depth should not exceed 2 cm.

  • Good cutting ability
  • Continuous cutting rim for clean, breakout-free cut edges

Field of application: Dry or wet cutting. For stone slabs made of concrete, concrete roofing tiles, gneiss, granite, terrazzo, bricks.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 2 x 22,234,5 x 5/64 x 7/813300–7GR1ED S3 TURBO 1154255705102122
125 x 2 x 22,235 x 5/64 x 7/812200–7GR1ED S3 TURBO 1254255705102139
180 x 2,2 x 22,237 x 7/64 x 7/88500–7GR1ED S3 TURBO 1804255705102146
230 x 2,5 x 22,239 x 7/64 x 7/86650–7GR1ED S3 TURBO 2304255705102153

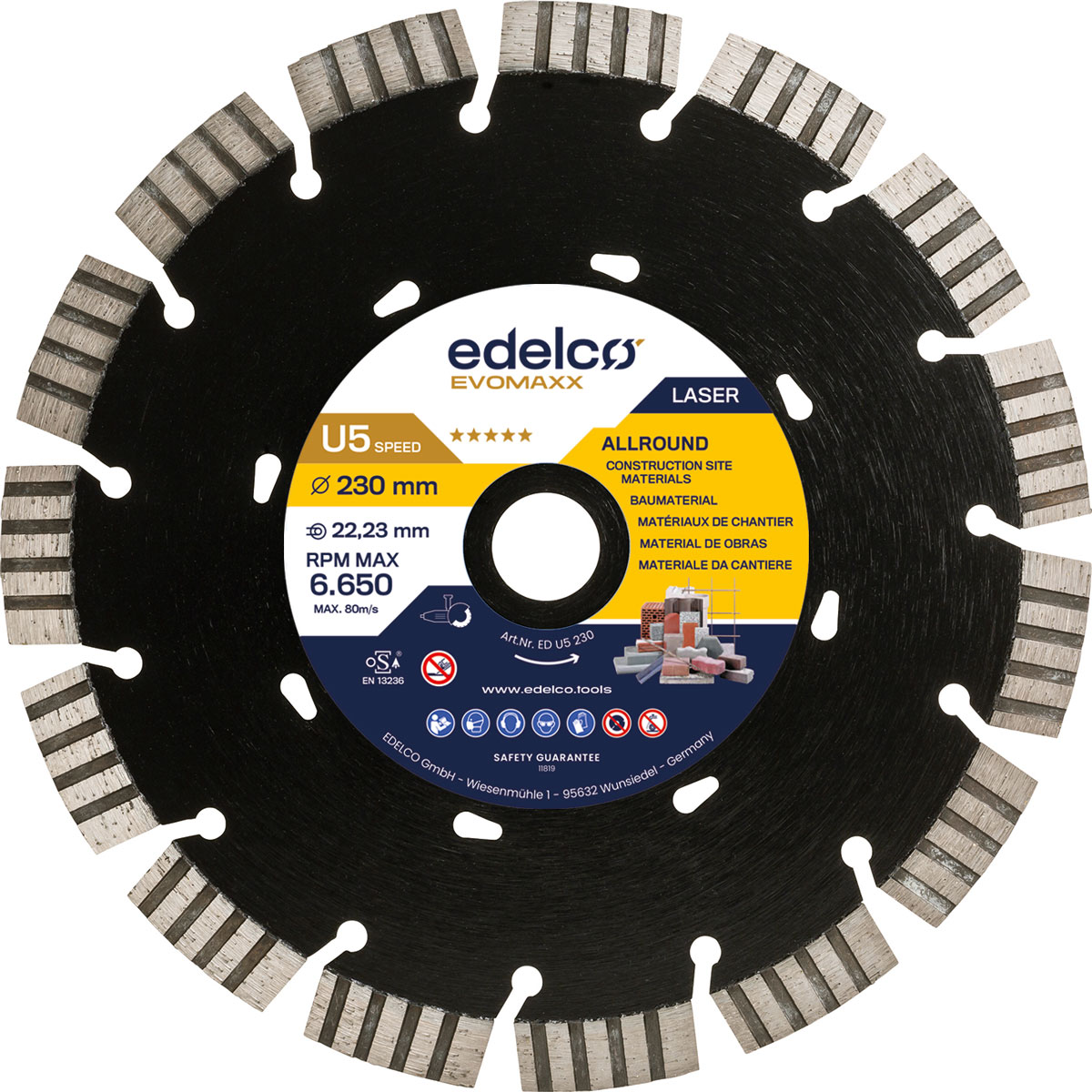

U5 speed

Our best-seller: a laser-welded, all-round cutting disc with speed segments for a fast cut and clean edges. Very good all-purpose characteristics, outstanding service life.For universal application, ranging from soft, abrasive stones to hard/natural stone. Ideal for intensive professional use.

  • Top-class, all-round product
  • High-performance diamonds for exceptional service life
  • Outstanding service life
  • Aggressive, laser-welded turbo segments
  • 12 to 15-mm segment height
  • Laser welded – no cooling breaks required

Field of application: Dry or wet cutting. For construction site materials such as concrete, reinforced concrete, exposed aggregate concrete. For hard and artificial stones such as gneiss, granite, clinker, porphyry and bricks.

Ø in mmØ in inchesRPM min-1No. of segmentsSegment height mmShapePUItem codeEAN code
115 x 2,2 x 22,234,5 x 3/32 x 7/813300812C31ED U5 SPEED 1154255705101958
125 x 2,2 x 22,235 x 3/32 x 7/812200912C31ED U5 SPEED 1254255705101965
180 x 2,4 x 22,237 x 3/32 x 7/885001212C31ED U5 SPEED 1804255705101972
230 x 2,6 x 22,239 x 7/64 x 7/866501615C31ED U5 SPEED 2304255705101989
300 x 3,2 x 2012 x 7/64 x 3/464002115C31ED U5 SPEED 300 204255705101996
300 x 3,2 x 25,412 x 7/64 x 164002115C31ED U5 SPEED 300 254255705102009
350 x 3,2 x 2014 x 7/64 x 3/455002515C31ED U5 SPEED 350 204255705102016
350 x 3,2 x 25,414 x 7/64 x 155002515C31ED U5 SPEED 350 254255705102023
