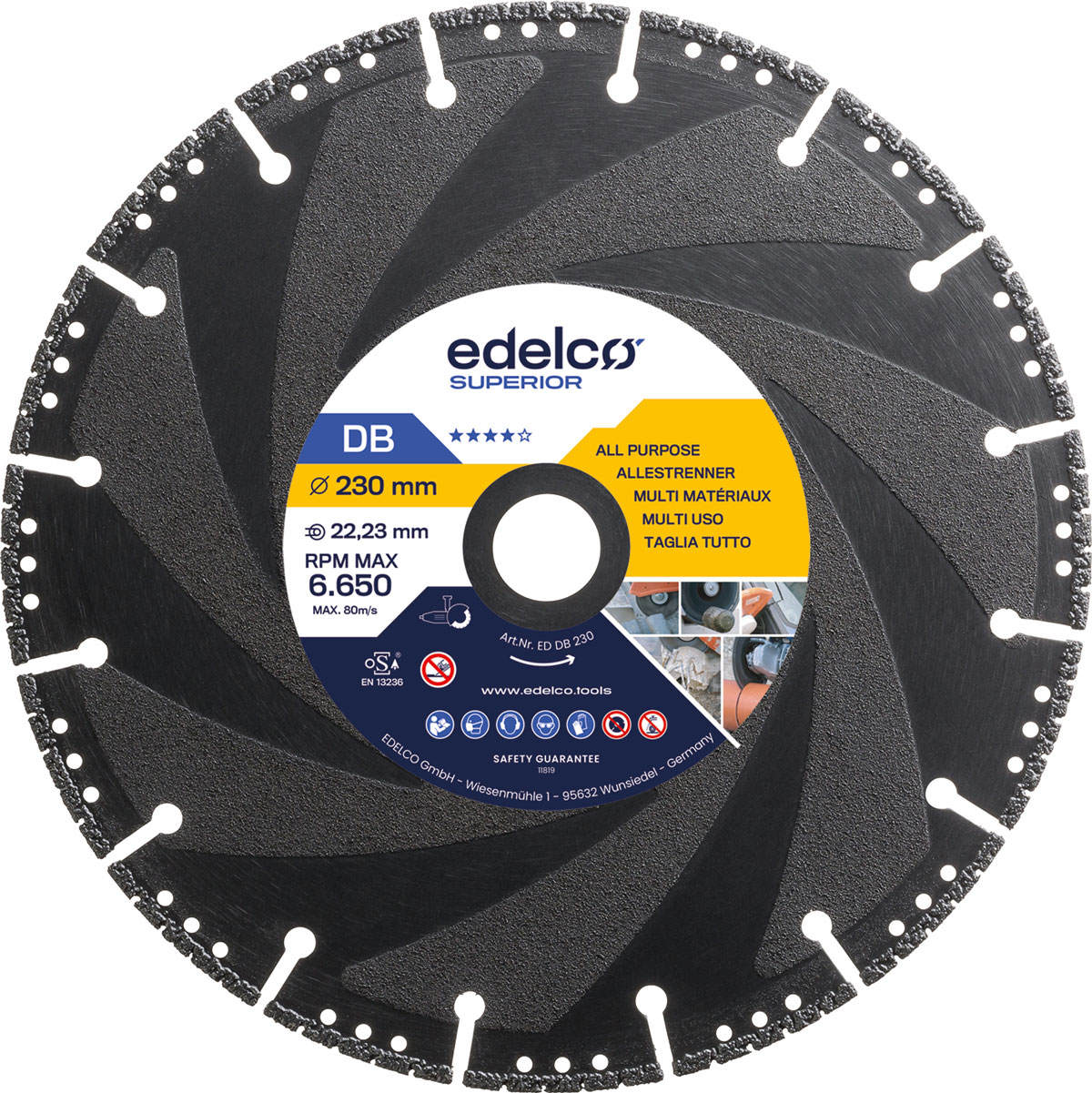

DB 4 – all purpose

Fast-cutting all-round product for wide range of universal applications on any construction site or for emergency operations. Core is coated directly with diamonds during
a special vacuum process.

  • For universal application with low to normal loads
  • Good cutting ability

Field of application: Dry or wet cutting. For numerous materials such as: artificial and natural stone, concrete, exposed aggregate concrete, concrete paving, clinker slabs, granite slabs, sand-lime brick, brick. Various metals, iron structures and iron profiles, cast iron, sheet metals, non-ferrous metals, ductile pipes, synthetic materials, glass, rubber, fibreglass, plastic, carbon fibre, wood, etc.

Ø in mmØ in inchesRPM min-1No. of segmentsSegment height mmShapePUItem codeEAN code
115 x 2,8 x 22,234,5 x 7/64 x 7/81330093C31ED DB 1154255705102405
125 x 2,8 x 22,235 x 7/64 x 7/812200103C31ED DB 1254255705102412
230 x 3 x 22,239 x 7/64 x 7/86650163C31ED DB 2304255705102429

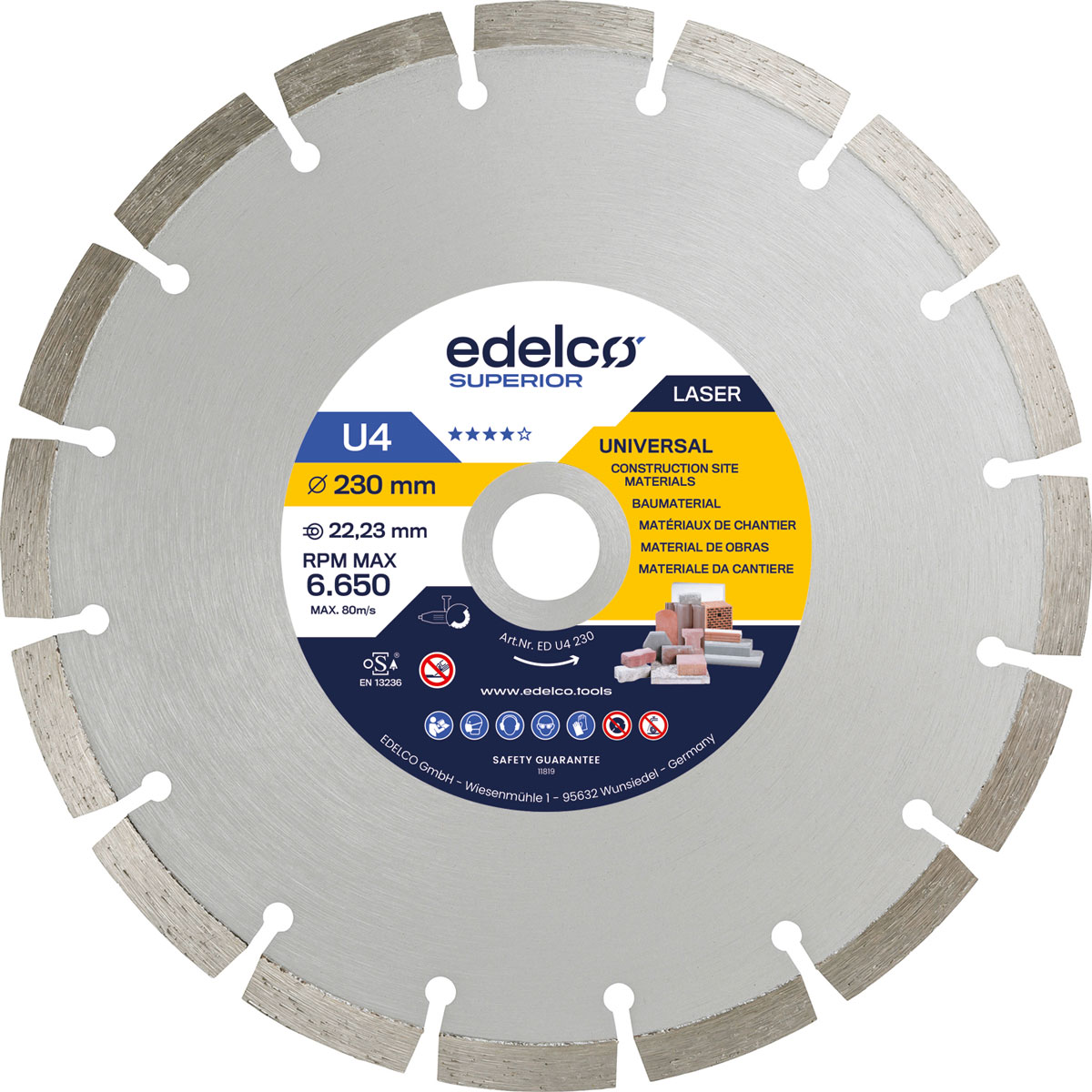

U4

Laser-welded, segmented U4 diamond cutting disc for construction site materials. Maximum safety and very good cutting results at an attractive price.

  • For universal application
  • Good price-performance ratio
  • High cutting speed
  • Good service life

Field of application: Dry or wet cutting. For construction site materials such as concrete, exposed aggregate concrete, border stones, natural stone and bricks.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 2,2 x 22,234,5 x 3/32 x 7/813300910C31ED U4 1154255705101828
125 x 2,2 x 22,235 x 3/32 x 7/8122001010C31ED U4 1254255705101835
180 x 2,4 x 22,237 x 3/32 x 7/885001410C31ED U4 1804255705101842
230 x 2,4 x 22,239 x 3/32 x 7/866501610C31ED U4 2304255705101859
300 x 2,8 x 2012 x 7/64 x 3/464001610C31ED U4 300 204255705101866
300 x 2,8 x 22,2312 x 7/64 x 7/864001610C31ED U4 300 224255705101873
300 x 2,8 x 25,412 x 7/64 x 164001610C31ED U4 300 254255705101880
300 x 2,8 x 3012 x 7/64 x 1 1/564001610C31ED U4 300 304255705101897
350 x 2,8 x 2014 x 7/64 x 3/455001910C31ED U4 350 204255705101903
350 x 2,8 x 22,2314 x 7/64 x 7/855001910C31ED U4 350 224255705101910
350 x 2,8 x 25,414 x 7/64 x 155001910C31ED U4 350 254255705101927
350 x 2,8 x 3014 x 7/64 x 1 1/555001910C31ED U4 350 304255705101934
400 x 3,2 x 25,416 x 7/64 x 147802810C31ED U4 400 254255705101941

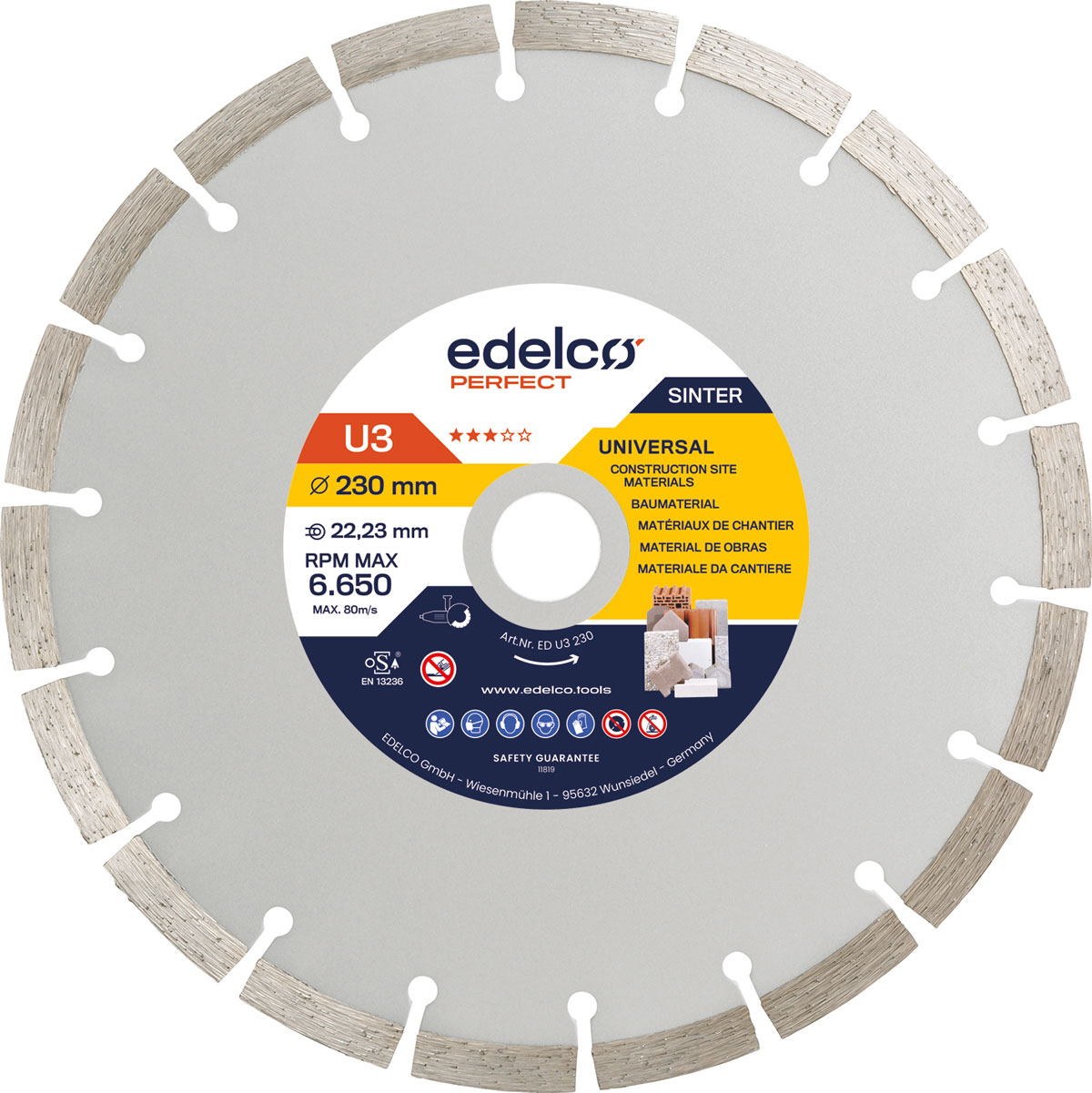

U3

Sintered, segmented diamond cutting disc for use on construction site materials.

  • For universal application with low to normal loads
  • Good price-performance ratio
  • Good cutting ability

Field of application: Dry or wet cutting. For construction site materials such as concrete, exposed aggregate concrete and bricks.

Ø in mmØ in inchesRPM min-1
No. of segments		Segment height mmShapePUItem codeEAN code
115 x 2 x 22,234,5 x 5/64 x 7/813300810C31ED U3 1154255705101750
125 x 2 x 22,235 x 5/64 x 7/812200910C31ED U3 1254255705101767
180 x 2 x 22,237 x 3/32 x 7/885001310C31ED U3 1804255705101774
230 x 2,4 x 22,239 x 3/32 x 7/866501610C31ED U3 2304255705101781
300 x 3 x 2012 x 7/64 x 3/464002210C31ED U3 300 204255705101798
300 x 3 x 22,2312 x 7/64 x 7/864002210C31ED U3 300 224255705101804
300 x 3 x 25,412 x 7/64 x 164002210C31ED U3 300 254255705101811

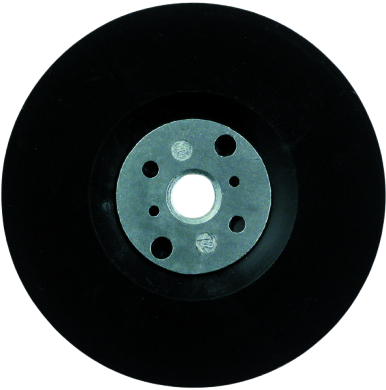

Backing pads

Safety when using fibre and semi-flexible grinding discs on the angle grinder. Good grinding finish due to the cushioning effect and elasticity of the backing pad.

DesignationØ in mmØ in inchesPUItem codeEAN code
M14 without velcro1154 1/21ED PGS 1154255705104645
M14 without velcro12551ED PGS 1254255705104652
M14 without velcro18071ED PGT 1804255705104669

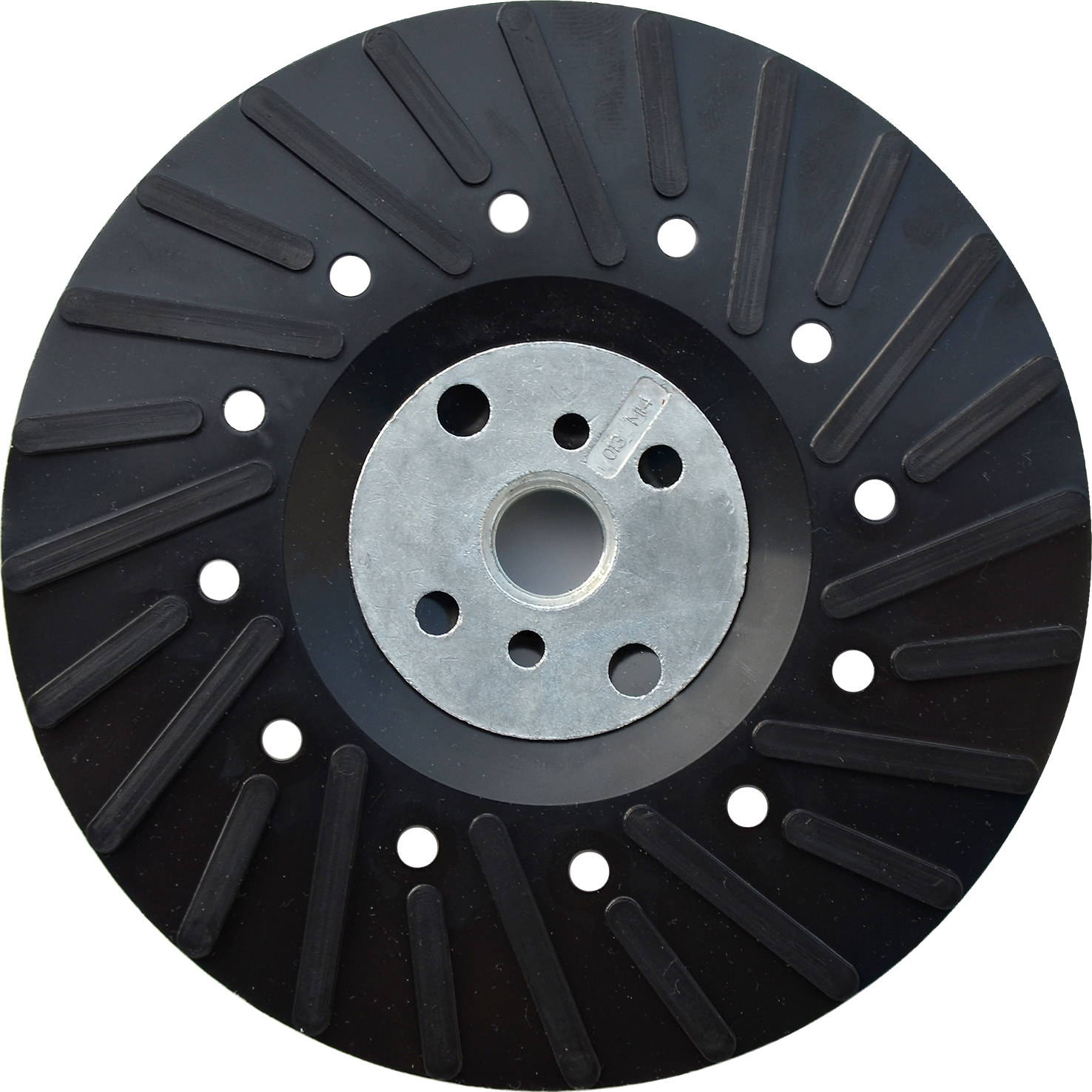

Ribbed backing pads



High-performance backing pad with radial ribs for optimal cooling. Medium-hard rubber for aggressive machining.

DesignationØ in mmØ in inchesPUItem codeEAN code
M14 ribbed1154 1/21ED PGT 1154255705104720
M14 ribbed12551ED PGT 1254255705104737

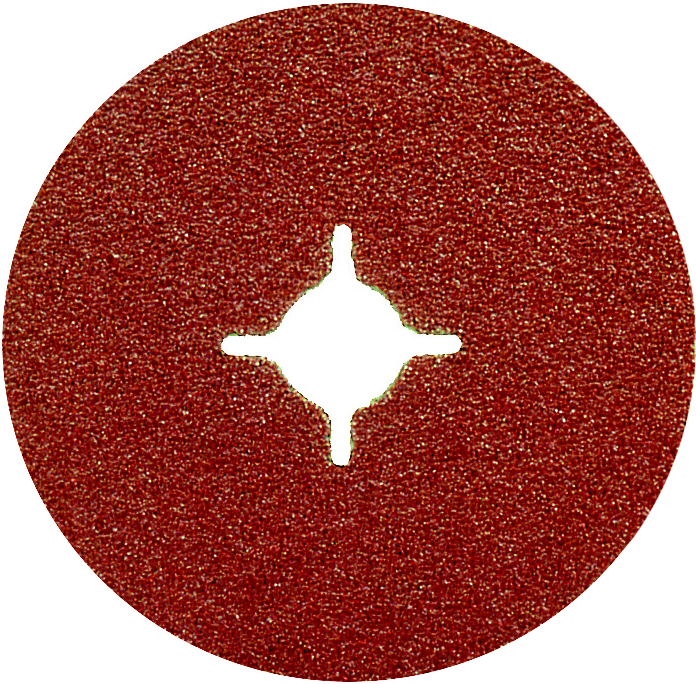

ALOX FIBER

Fibre discs with normal corundum for mechanical processing of metals

  • High removal rates
  • Good service life
  • PLEASE NOTE: A backing pad is required for mounting the disc on the angle grinder!

Field of application: For grinding metal and cast iron. Also suitable for wood.

DesignationØ in mmØ in inchesPUItem codeEAN Code
AF 16115 x 22,234 1/2 x 7/825ED AF581 115 164255705104089
AF 24115 x 22,234 1/2 x 7/825ED AF581 115 244255705104096
AF 36115 x 22,234 1/2 x 7/825ED AF581 115 364255705104102
AF 40115 x 22,234 1/2 x 7/825ED AF581 115 404255705104119
AF 50115 x 22,234 1/2 x 7/825ED AF581 115 504255705104126
AF 60115 x 22,234 1/2 x 7/825ED AF581 115 604255705104133
AF 80115 x 22,234 1/2 x 7/825ED AF581 115 804255705104140
AF 100115 x 22,234 1/2 x 7/825ED AF581 115 1204255705104157
AF 120115 x 22,234 1/2 x 7/825ED AF581 115 1004255705104164
AF 16125 x 22,235 x 7/825ED AF581 125 164255705104171
AF 24125 x 22,235 x 7/825ED AF581 125 244255705104188
AF 36125 x 22,235 x 7/825ED AF581 125 364255705104195
AF 40125 x 22,235 x 7/825ED AF581 125 404255705104201
AF 60125 x 22,235 x 7/825ED AF581 125 604255705104218
AF 80125 x 22,235 x 7/825ED AF581 125 804255705104225
AF 120125 x 22,235 x 7/825ED AF581 125 1204255705104232
AF 16180 x 22,237 x 7/825ED AF581 180 164255705104249
AF 24180 x 22,237 x 7/825ED AF581 180 244255705104256
AF 36180 x 22,237 x 7/825ED AF581 180 364255705104263
AF 40180 x 22,237 x 7/825ED AF581 180 404255705104270
AF 60180 x 22,237 x 7/825ED AF581 180 604255705104287
AF 80180 x 22,237 x 7/825ED AF581 180 804255705104294
AF 100180 x 22,237 x 7/825ED AF581 180 1004255705104300
AF 120180 x 22,237 x 7/825ED AF581 180 1204255705104317

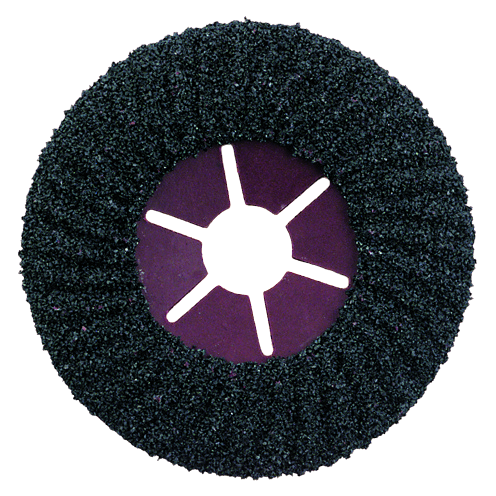

SIC – semi-flexible

Semi-flexible grinding disc coated with silicon carbide. The special disc structure results in a higher removal rate than with a fibre disc, but a coarser finish as well.

Special feature: Type SC 24 is also used for hoof care.

  • High removal rates
  • Very good service life
  • PLEASE NOTE: A backing pad is required for mounting the disc on the angle grinder!

Field of application: For grinding stone, steel, stainless steel, aluminium and plastic. Also used for hoof care (SC 24).

DesignationØ in mmØ in inchesPUItem codeEAN Code
SC 16115 x 224 1/2 x 7/85ED SFDC 115 164255705104485
SC 24115 x 224 1/2 x 7/85ED SFDC 115 244255705104492
SC 36115 x 224 1/2 x 7/85ED SFDC 115 364255705104508
SC 60115 x 224 1/2 x 7/85ED SFDC 115 604255705104515
SC 80115 x 224 1/2 x 7/85ED SFDC 115 804255705104522
SC 120115 x 224 1/2 x 7/85ED SFDC 115 1204255705104539
SC 16125 x 225 x 7/85ED SFDC 125 164255705104546
SC 24125 x 225 x 7/85ED SFDC 125 244255705104553
SC 36125 x 225 x 7/85ED SFDC 125 364255705104560
SC 40125 x 225 x 7/85ED SFDC 125 404255705104577
SC 60125 x 225 x 7/85ED SFDC 125 604255705104584
SC 80125 x 225 x 7/85ED SFDC 125 804255705104591
SC 16180 x 227 x 7/85ED SFDC 180 164255705104607
SC 24180 x 227 x 7/85ED SFDC 180 244255705104614
SC 36180 x 227 x 7/85ED SFDC 180 364255705104621
SC 60180 x 227 x 7/85ED SFDC 180 604255705104638

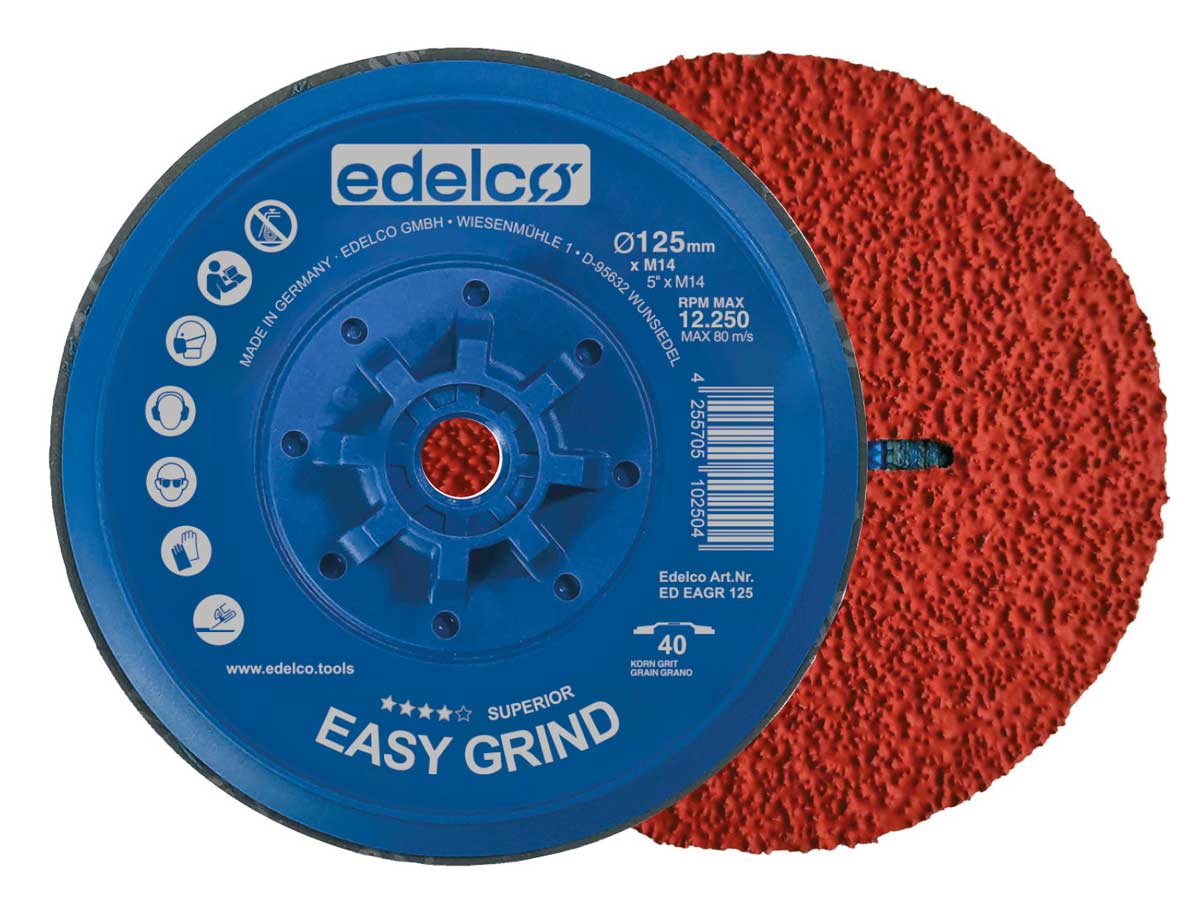

EASY GRIND


Powerful grinding pad with M14 thread for angle grinders
The powerful ceramic abrasive cloth is directly connected to the backing of the disc.

This ensures particularly pleasant, low-vibration grinding with high efficiency.

In contrast to a grinding disc, the grinding is performed at a flat angle of 5° to max. 15°.

  • Pleasant, low-vibration working – gentle on man and machine
  • Aggressive stock removal
  • Long service life when used at an angle of 5° to max. 15°
  • Cool grinding results
  • Trimmable plastic backing

Field of application: Removal of weld seams, chamfering, grinding surfaces, descaling as well as demanding deburring work.

Ø in mmØ in inchesRPM min-1GritPUItem codeEAN Code
115 x M144 1/2 x M14133004010ED EAGR 1154255705102481
125 x M145 x M14122004010ED EAGR 1254255705102504

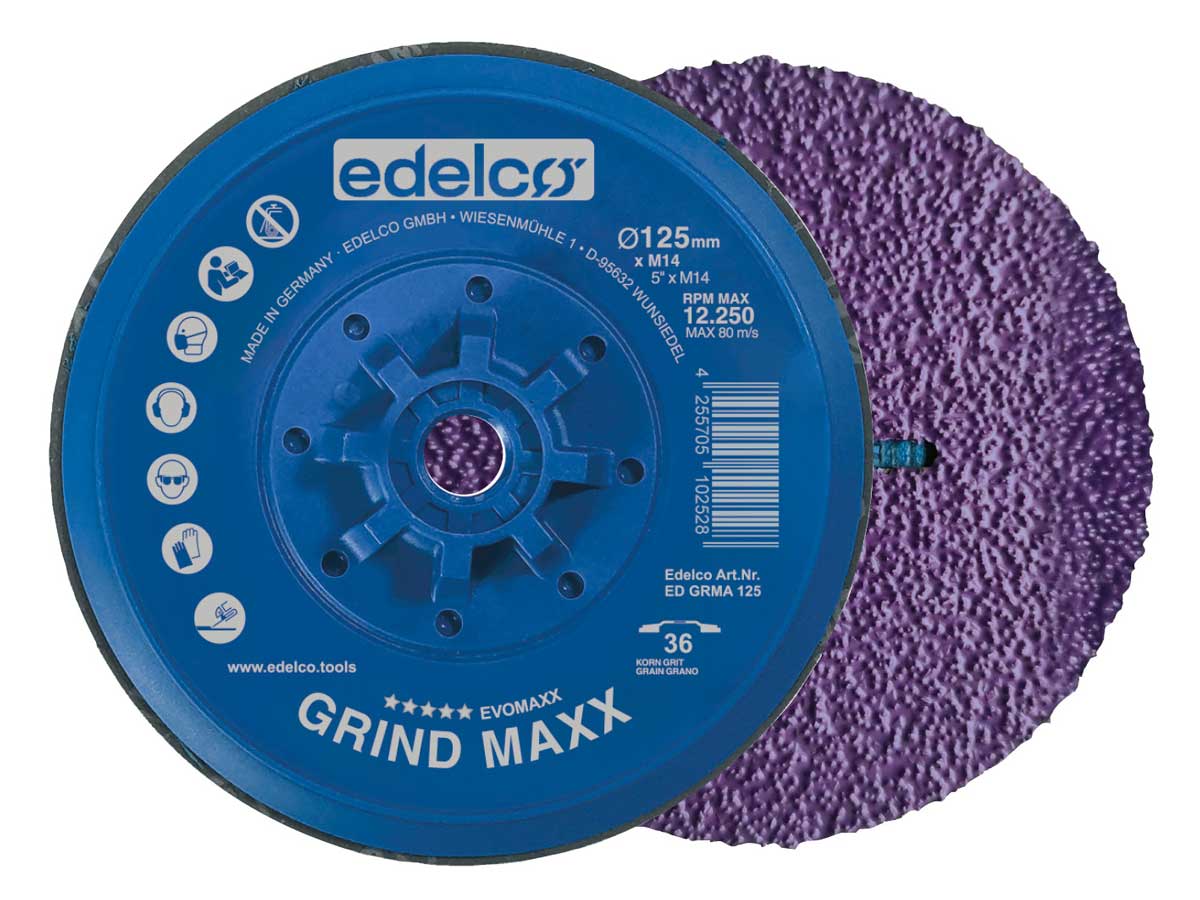

GRIND MAXX

High-performance grinding pad with M14 thread for angle grinders

The secret of the high stock removal rates that can be achieved with GRIND MAXX is the use of a geometrically aligned, ceramic abrasive grain of the latest generation. This wears evenly, remains constantly sharp over the entire lifetime of the disc and enables cool grinding. The abrasive cloth is directly connected to the grinding disc. This ensures pleasant, low-vibration grinding with enormous stock removal. A backing pad is not required.

In contrast to a grinding disc, the grinding is performed at a flat angle of 5° to max. 15°.

  • Aggressive, ultra-fast material removal
  • Enormous lifetime for highest productivity when used at an angle of 5° to max. 15°
  • Pleasant, low-vibration operation – gentle on man and machine
  • Grinding with high precision possible
  • Cool grinding results
  • Trimmable plastic backing
  • Quickly mounted thanks to M14 thread
  • For steel and stainless steel

Field of application: Removal of weld seams, chamfering, grinding surfaces, descaling as well as demanding deburring work.

Ø in mmØ in inchesRPM min-1GritPUItem codeEAN Code
115 x M144 1/2 x M14133003610ED GRMA 1154255705102528
125 x M145 x M14122003610ED GRMA 1254255705102542

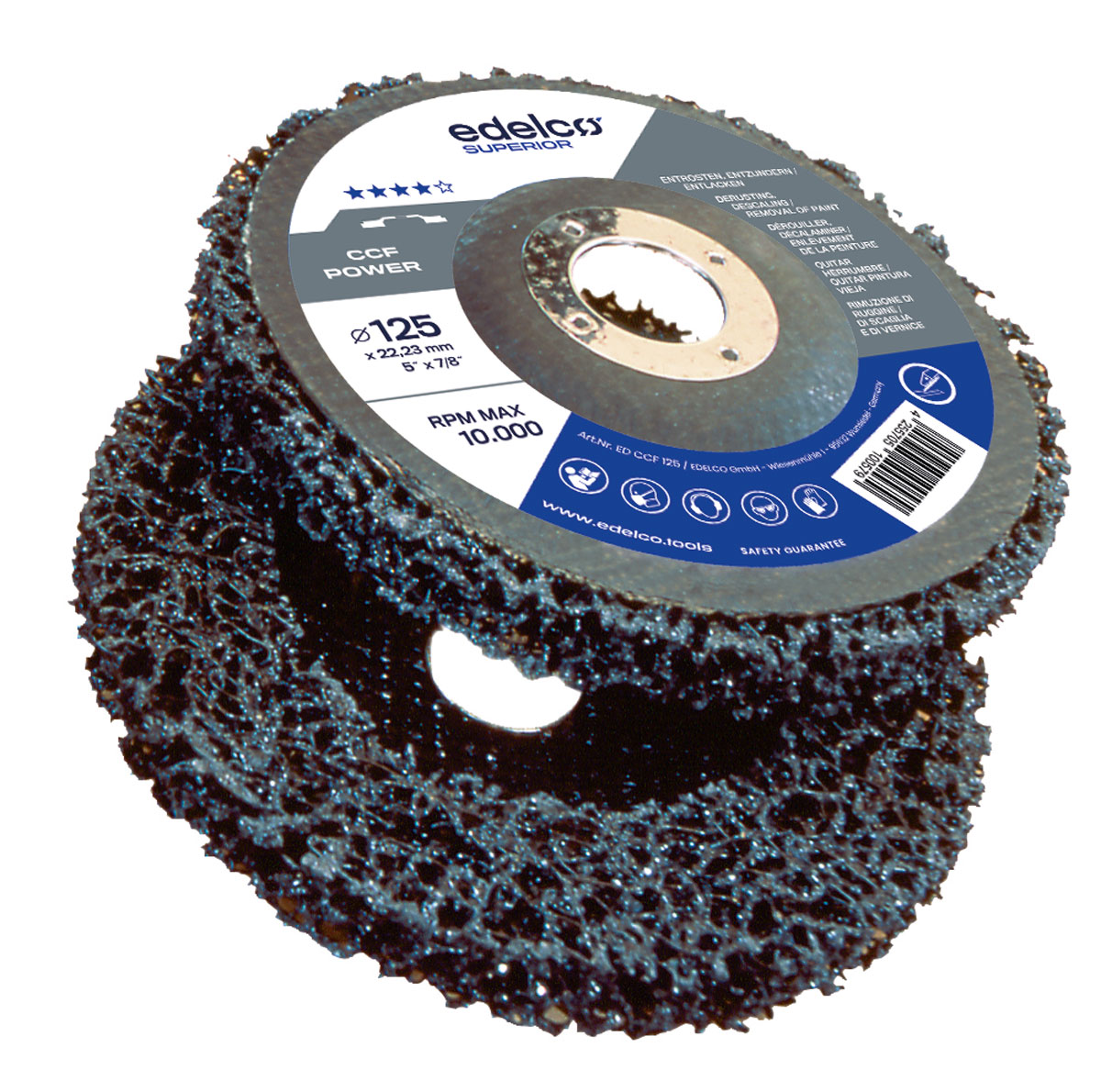

Coarse cleaning fleece for angle grinders

Coarse cleaning fleeces on glass fibre backing. Suitable for cleaning and polishing all surfaces.

Attain the best results in sanding and cleaning metals, stainless steel, wood and plastic and can be used as a prelimi-

nary stage before polishing. They are made of intertwined nylon fibres which are immersed in synthetic resin and gently hardened.

  • Removes old paint, rust and weld spots without scratching the surface of he workpiece
  • Cleaning and smoothing wood and plastic
  • Polishing of stanless steel
  • Removal of thermal bluing

Field of application: General-purpose use for metals, stainless steel, wood and plastic.

Please note: Coarse cleaning fleeces are not suitable for edge finishing. They remove foreign matter and are non-stock removing

Ø in mmØ in inchesRPMPUFormOrden no.EAN Code
115 x 22,234 1/2 x 7/81100010ED CCF 1154255705100043
125 x 22,235 x 7/81000010ED CCF 1254255705100579
