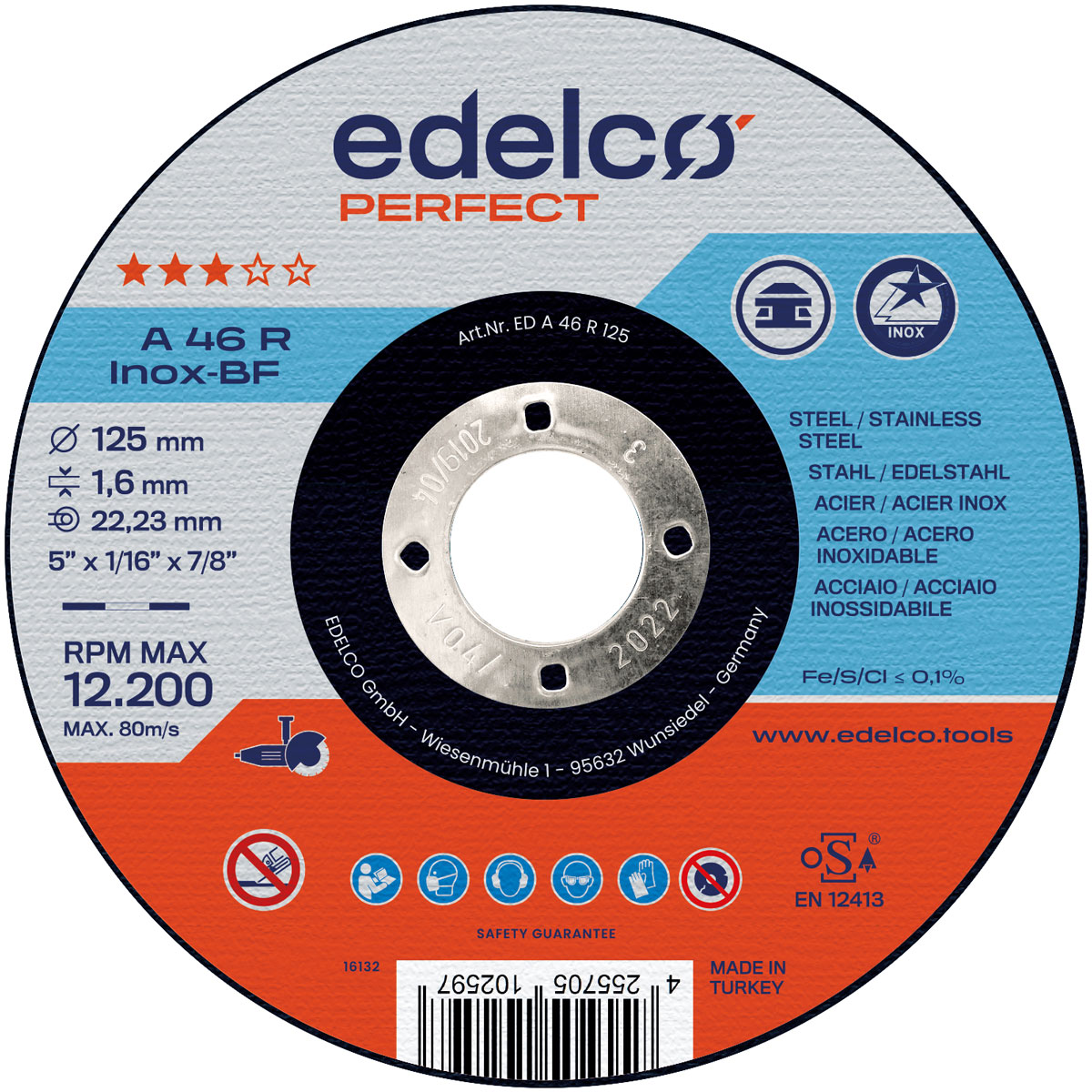

A 46 R – 1,6 mm

Cost-effective thin 1.6-mm steel cutting disc.

A good compromise between conventional 3-mm and 1-mm discs.

Good cutting ability and service life
Almost no burr

Field of application: For profiles and sheet metals in steel and container construc- tion applications. Also suitable for processing stainless steel (iron- and sulphur-free).

Ø in mm	Ø in inches	RPM min^-1	PU	Item code	EAN Code
115 x 1.6 x 22.23	4 1/2 x 1/16 x 7/8	13300	25	ED A 46 R 115	4255705102580
125 x 1.6 x 22.23	5 x 1/16 x 7/8	12200	25	ED A 46 R 125	4255705102597
230 x 1,9 x 22,23	9 x 5/64 x 7/8	6650	25	ED A 46 R 230	4255705102603

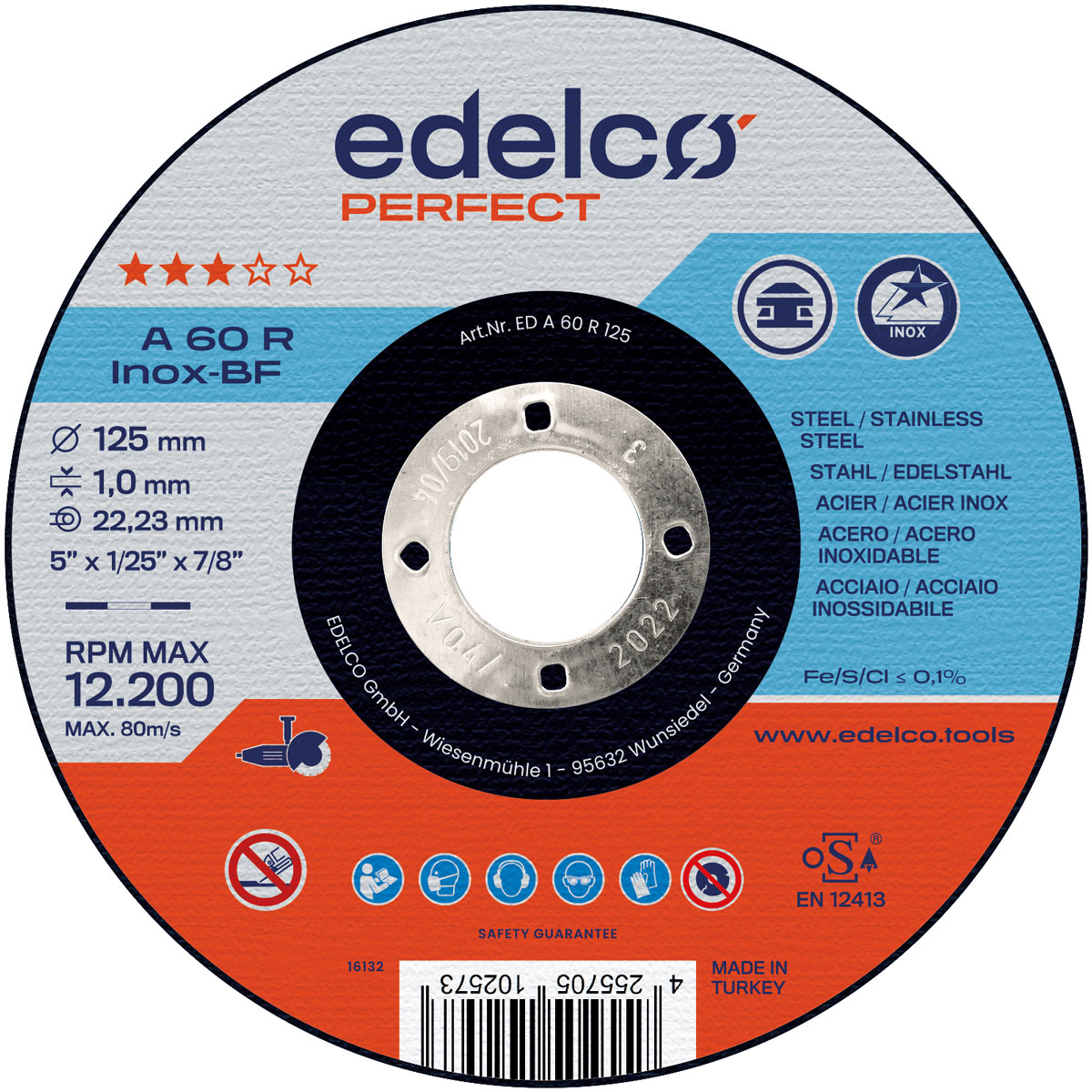

A 60 R – 1 mm

Cost-effective thin cutting disc for cutting thin-walled materials.

Good cutting ability with a good service life
A precise cut to the millimetre
Low-burr edges

Field of application: For thin-walled profiles and sheet metals in steel and container construction applications. Also frequently used in car body building. Also suitable for stainless steel.

Ø in mm	Ø in inches	RPM min^-1	PU	Shape	Item code	EAN Code
115 x 1.0 x 22.23	4 1/2 x 1/25 x 7/8	13300	25		ED A 60 R 115	4255705102566
125 x 1.0 x 22.23	5 x 1/25 x 7/8	12200	25		ED A 60 R 125	4255705102573

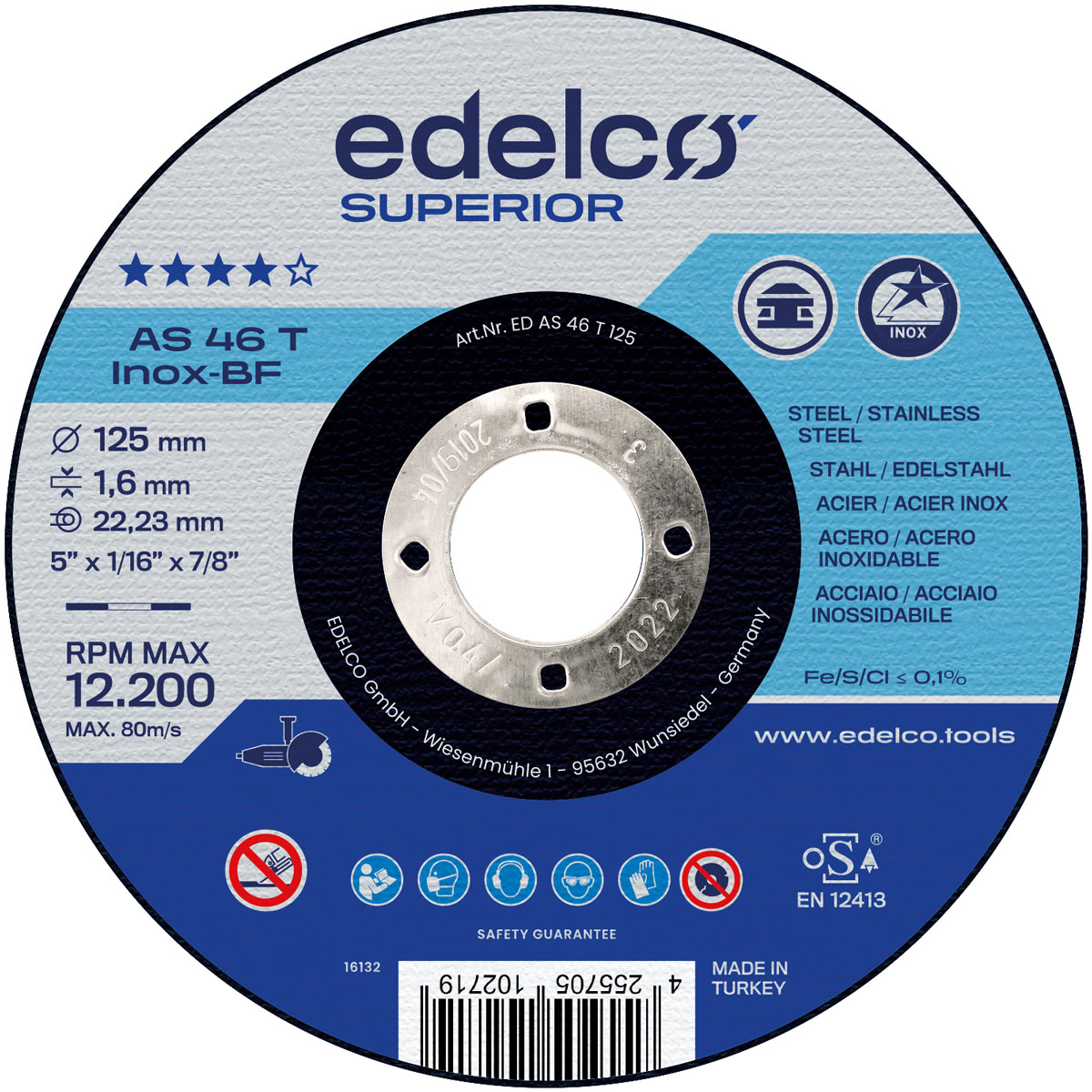

AS 46 T INOX – 1,6 mm

Thin cutting disc in 1,6 mm thickness for fast and easy cuts in steel and stainless steel.

Particularly easy-cutting disc with long service life
Clean cut
Low-burr cut edges
No blue discolouration of the workpiece due to heat
Iron- and sulphur-free

Field of application: For thin-walled profiles and sheet metals made of stainless steel or standard steel. The standard in tank systems and container construction.

Ø in mm	Ø in inches	RPM min^-1	PU	Item code	EAN Code
115 x 1,6 x 22,23	4 1/2 x 1/16 x 7/8	13300	25	ED AS 46 T 115	4255705102702
125 x 1,6 x 22,23	5 x 1/16 x 7/8	12200	25	ED AS 46 T 125	4255705102719
150 x 1,6 x 22,23	6 x 1/16 x 7/8	10200	25	ED AS 46 T 150	4255705102726
180 x 1,6 x 22,23	7 x 1/16 x 7/8	8500	25	ED AS 46 T 180	4255705102733
230 x 1,9 x 22,23	9 x 5/64 x 7/8	6650	25	ED AS 46 T 230	4255705102740

AS 60 T INOX – 1 mm

Our Bestseller: 1 mm cutting disc for fast, clean and smooth cuts in steel or stainless steel.

Particularly easy-cutting disc with good service life
Clean, precise cut down to the millimetre – with minimal effort
Low-burr to burr-free edges (saves reworking)
No blue discolouration of the workpiece due to heat
Iron- and sulphur-free

Field of application: For thin sheet metal used in car body building, tank system and container construction, steel cables, thin-walled profiles and pipes of stainless steel.

POWER-PACK TIN

10 cutting discs in a metal tin
An absolute sales hit, guaranteed to boost turnover

Ø in mm	Ø in inches	RPM min^-1	PU	Item code	EAN Code
115 x 1 x 22.23	4 1/2 x 1/25x 7/8	13300	25	ED AS 60 T 115	4255705102689
125 x 1 x 22.23	5 x 1/25x 7/8	12200	25	ED AS 60 T 125	4255705102696
			*Power Pack tin*
115 x 1 x 22.23	4 1/2 x 1/25 x 7/8	13300	1 tin of 10 discs	ED AS 60 T 115 P	4255705103006
125 x 1 x 22.23	5 x 1/25 x 7/8	12200	1 tin of 10 discs	ED AS 60 T 125 P	4255705103013

Cutting disc in industrial quality, for highest requirements. The recipe with zirconium grain provides fast and effortless cutting in combination with an extraordinary service-life. The 230 mm disc is in depressed center for a stable straight cut as well as good flexibility in the outer cutting area.

Work progresses quickly thanks to high cutting speed
Very long service life
Comfortably smooth cut with minimal contact pressure
Low-burr to burr-free cut
Iron- and sulphur-free

Field of application: For sheet metal, steel cables, thin-walled profiles and pipes made of stainless steel or standard steel.

Ø in mm	Ø in inches	RPM min^-1	PU	Item code	EAN Code
115 x 1.6 x 22.23	4 1/2 x 1/16 x 7/8	13300	25	ED AS 46 W 115	4255705102658
125 x 1.6 x 22.23	5 x 1/16 x 7/8	12200	25	ED AS 46 W 125	4255705102665
230 x 1.9 x 22.23	9 x 5/64 x 7/8	6650	25	ED AS 46 W 230	4255705102672

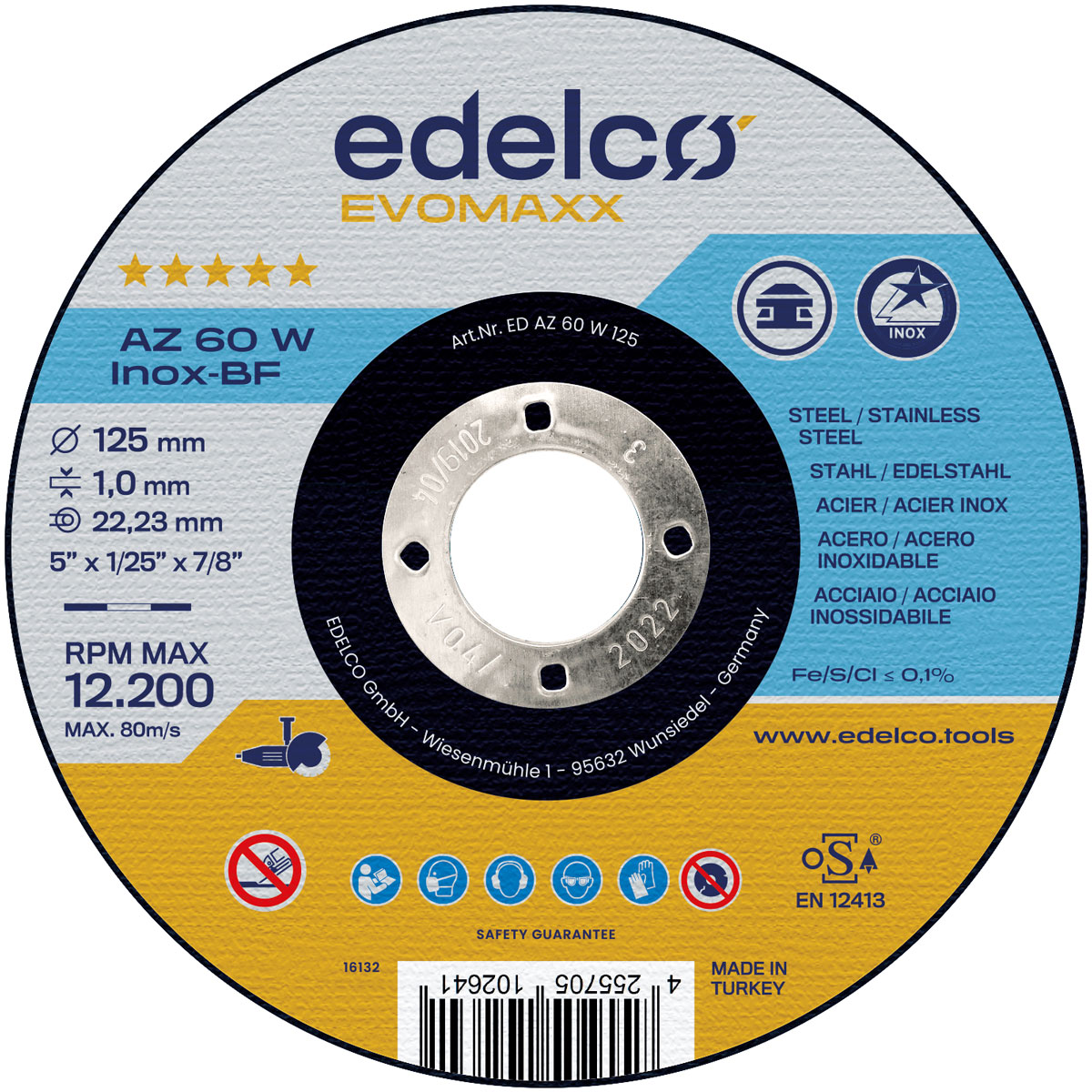

AZ 60 W INOX – 1 mm

Top class cutting disc with zirconium and monocrystalline grain, for very fast and precise cutting and an extraordinary long service life. Our most efficient cutting disc.

Work progresses quickly thanks to incredibly high cutting performance
A precise cut to the millimetre with minimal physical effort
Maximum service life and thus ultimate efficiency
Low-burr to burr-free edges (saves reworking)
No blue discolouration of the workpiece due to heat
Iron- and sulphur-free

Field of application: For thin sheet metal used in car body building, tank system and container construction, steel cables, thin-walled profiles and pipes of stainless steel, steel, non-ferrous metals or composite mate- rials (glass-reinforced plastics), high temperature resistant materials.

Ø in mm	Ø in inches	RPM min^-1	PU	Shape	Item code	EAN Code
115 x 1 x 22.23	4 1/2 x 1/25 x 7/8	13300	25		ED AZ 60 W 115	4255705102634
125 x 1 x 22.23	5 x 1/25 x 7/8	12200	25		ED AZ 60 W 125	4255705102641

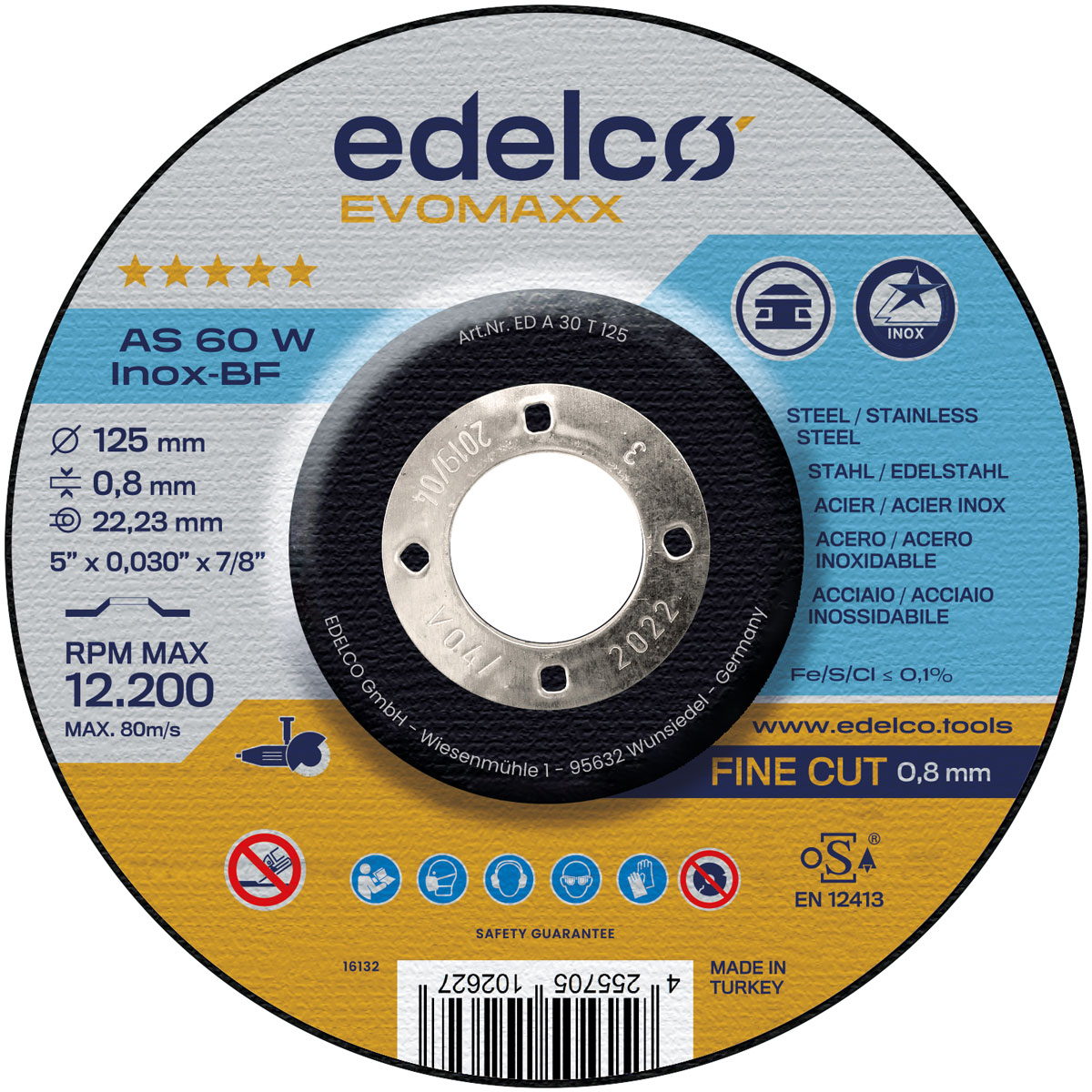

AS 60 W INOX – 0,8 mm

Extra-fine, high-performance INOX cutting disc with 0.8 mm thick- ness. The right choice for quickly cutting thin-walled materials.

Work progresses quickly thanks to incredibly high cutting performance
Particularly smooth-running cutting disc
Fine, smooth cut with minimal contact pressure
Depressed centre for good stability
Low-burr to burr-free cutting with limited sparking
Iron- and sulphur-free

Field of application: For thin sheet metals, fine steel cables, thin-walled profiles and stainless steel pipes, steel, non-ferrous metals and composite materials (glass-reinforced plastics).
